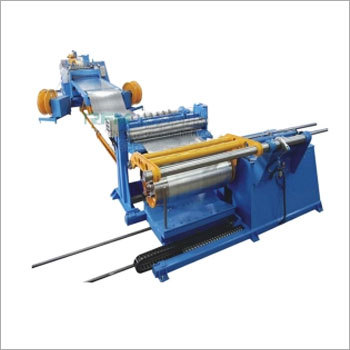

Auto Slitting Line Forming Machine
Auto Slitting Line Forming Machine
Product Code : AIT 18
Brand Name : AURIGA INTEGRATED
Price And Quantity
- Minimum Order Quantity
- 1 Unit
- Price
- 850000 INR/Unit
Product Specifications
- Product Type
- Line Forming Machine
- General Use
- To cut large roll of material into narrower rolls.
- Material
- Steel
- Type
- Hydraulic Cutting Machine
- Weight (kg)
- 200 Kilograms (kg)
- Computerized
- Yes
- Voltage
- 380V/3ph/50Hz Volt (v)
- Feature
- High Efficiency, Good Quality
- Color
- Blue
Product Description
The Auriga integrated Technology Company is the established Exporter, Manufacturer, Importer, Supplier and Trader of The FX Auto Sitting Line Forming Machine. These machines are use to cut large roll of material into narrower rolls. It is made by using optimum quality matter with the aid of innovative techniques. To assure the durability and reliability our team test all the products on all quality parameters. The price of FX Auto Sitting Line Forming Machine is affordable. Further, we also make hassle free on time delivery for all our valuable clients.
Features:
- Hassle free operations
- Automatic
- Rust free
- Superior performance
Technical Specification :
| No. | Item | Parameter | Note | |
| 1 | Material
| Type | PPGI & PPGL |
|
| Width | 900-1250mm |
| ||
| Thickness | 0.30-0.80mm |
| ||
| 2 | Product
| width tolerance | 0.5mm |
|
| Min slitting width | 100mm |
| ||
| 3 | Hydraulic decoiler | Type | Hydraulic decoiler |
|
| Decoiler speed | 0-15m/min |
| ||
| Suitable coil OD | 1200mm |
| ||
| Suitable coil ID | 508mm |
| ||
| Max Coil width | 1250mm |
| ||
| Max. Capacity | 5 T |
| ||
| 4 | Slitting device | Slitting speed | 0-15mm/min |
|
| Slitting shaft diameter | Ф100mm |
| ||
| Shearing blade | 9 pieces |
| ||
| Max slitting pieces | 10 pieces |
| ||
| Shearing blade material | 12CrMoV |
| ||
| Pinching roller | 2 couples |
| ||
| 5 | Recoiler | Max coil weight | 5 T |
|
| Inner diameter | 508/610mm |
| ||
| Max out diameter | 1250mm |
| ||
| Recoiler speed | 0-15m/min |
| ||
| 6 | Power Requirement | Voltage | 380V/3ph/50Hz | Customized |
| Motor | 18.7kw |
| ||
Trade Information
- Payment Terms
- Cash in Advance (CID), Cash Advance (CA)
- Supply Ability
- 10 Unit Per Day
- Delivery Time
- 1 Months
- Main Export Market(s)
- Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
- Main Domestic Market
- All India
